Making the Single Solenoid Engine V3 – Electronics

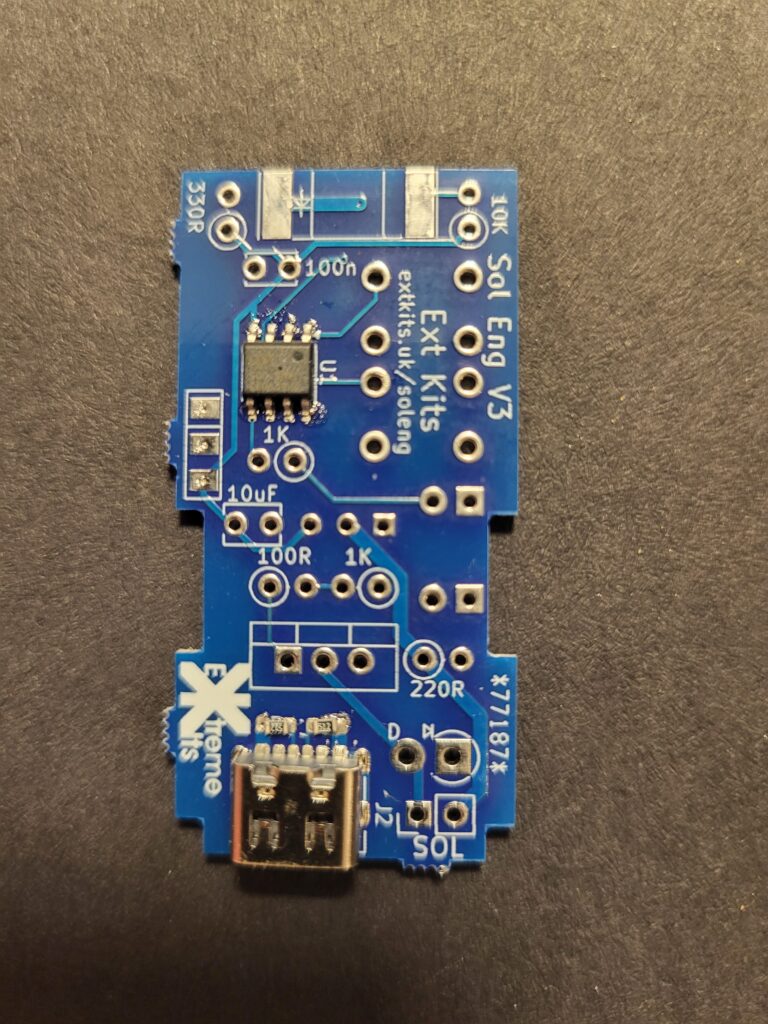

Take the PCB, and ensure its is clean and dry

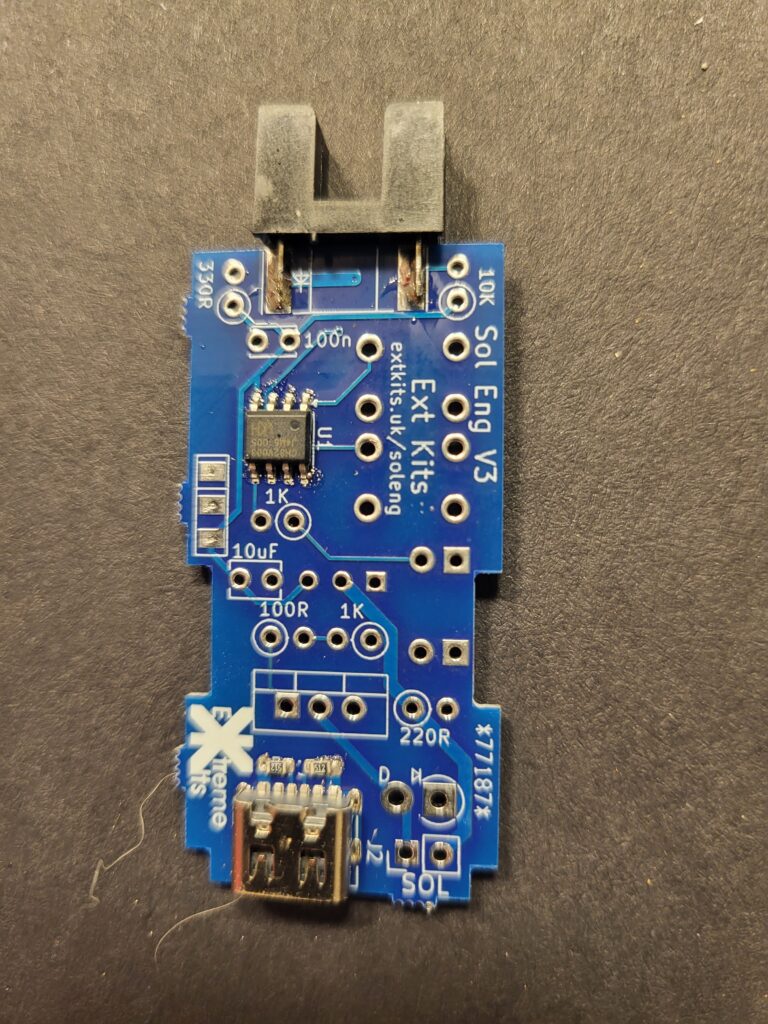

Crop the leads of the Slotted opto to 5mm and solder onto the edge of the PCB, aligning the diode symbol on the opto with the diode symbol on the PCB

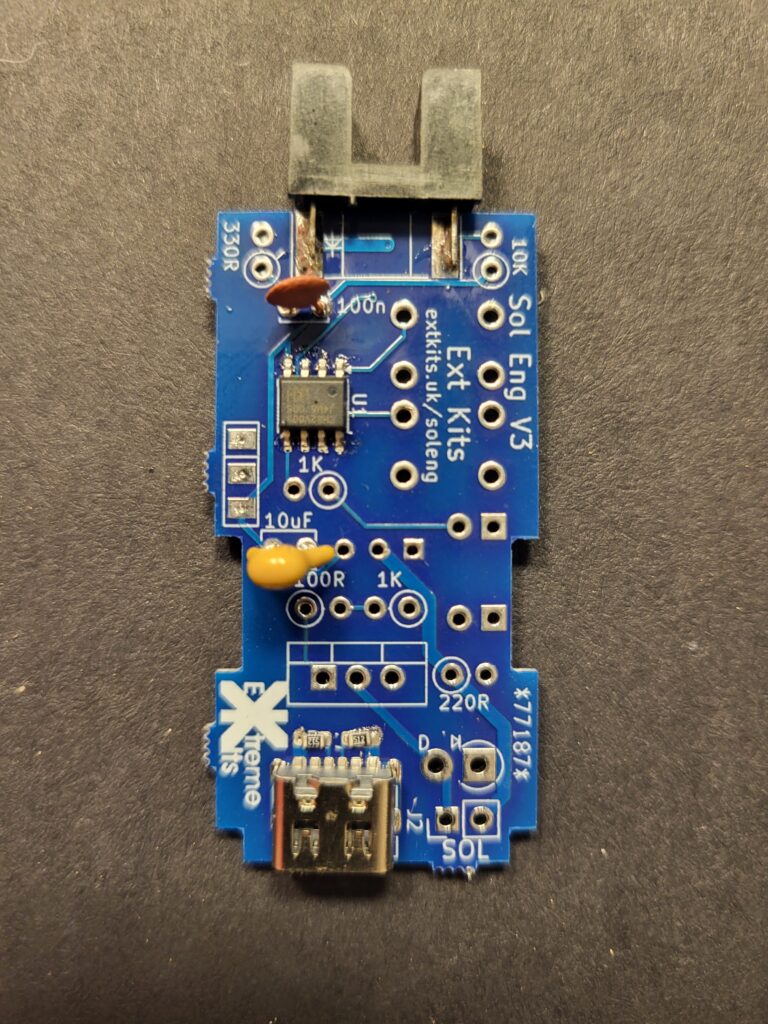

Take the 100n Capacitor (marked 104) and the 10uF capacitor (marked 106) and solder in to the PCB, you may have to bend the leads of the 10uF to fit.

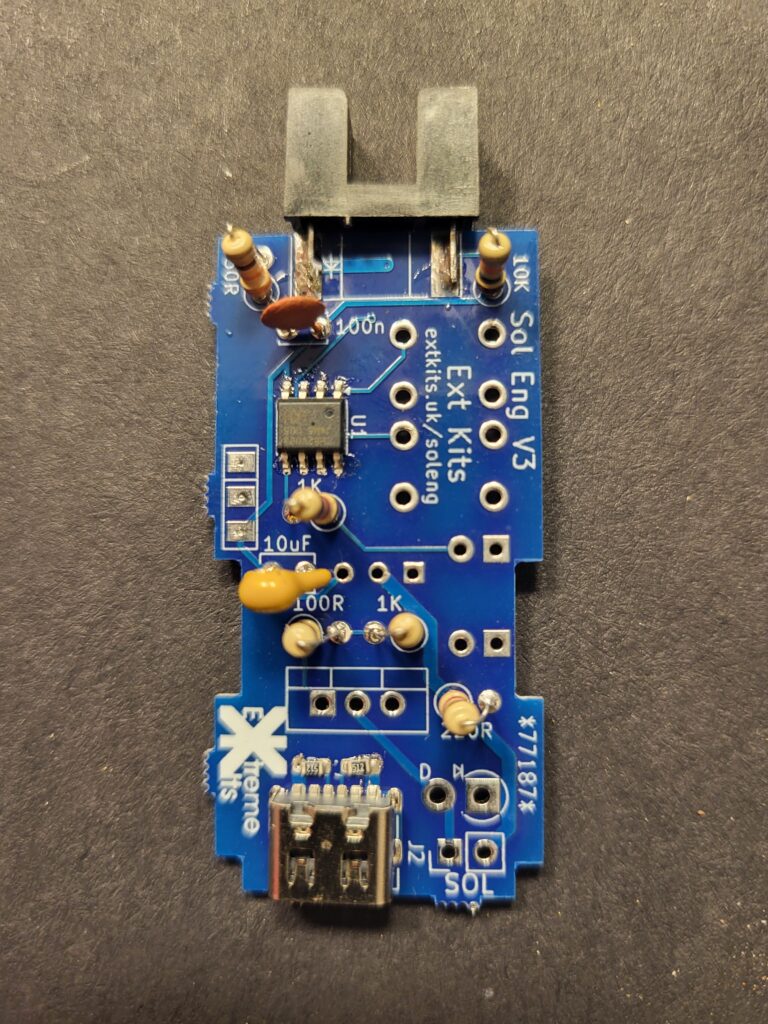

insert the resistors as shown

2 x

1k or

1 x

330R or

1 x

10k or

1x

100R or

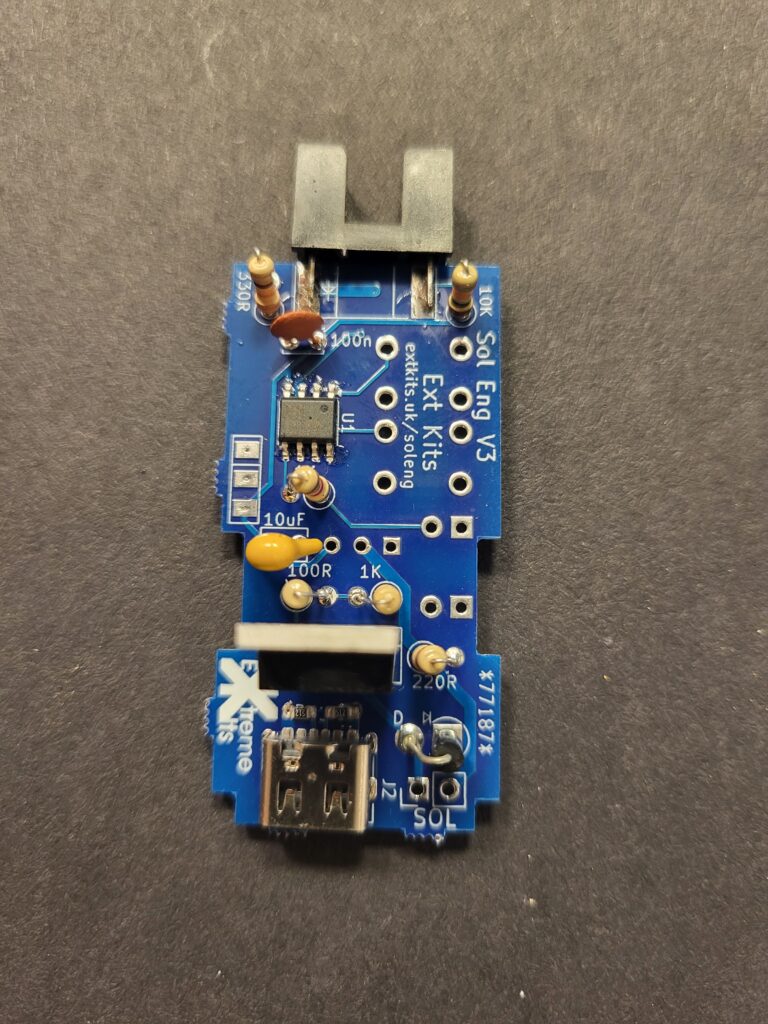

Solder in the transistor, ensuring the heat sink matches the ident on the PCB.

and solder in the diode

Ensuring that the cathode (white ring around the diode) is connected to the square PCB pad.

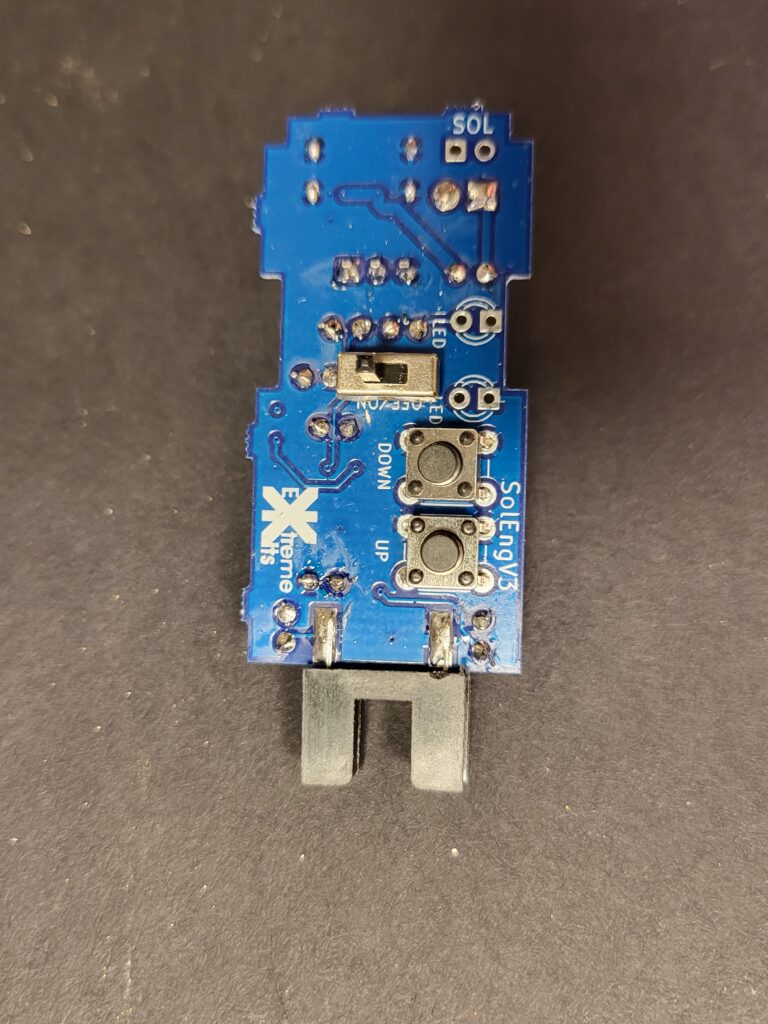

Flip the PCB over and solder in the two push buttons, and the small switch.

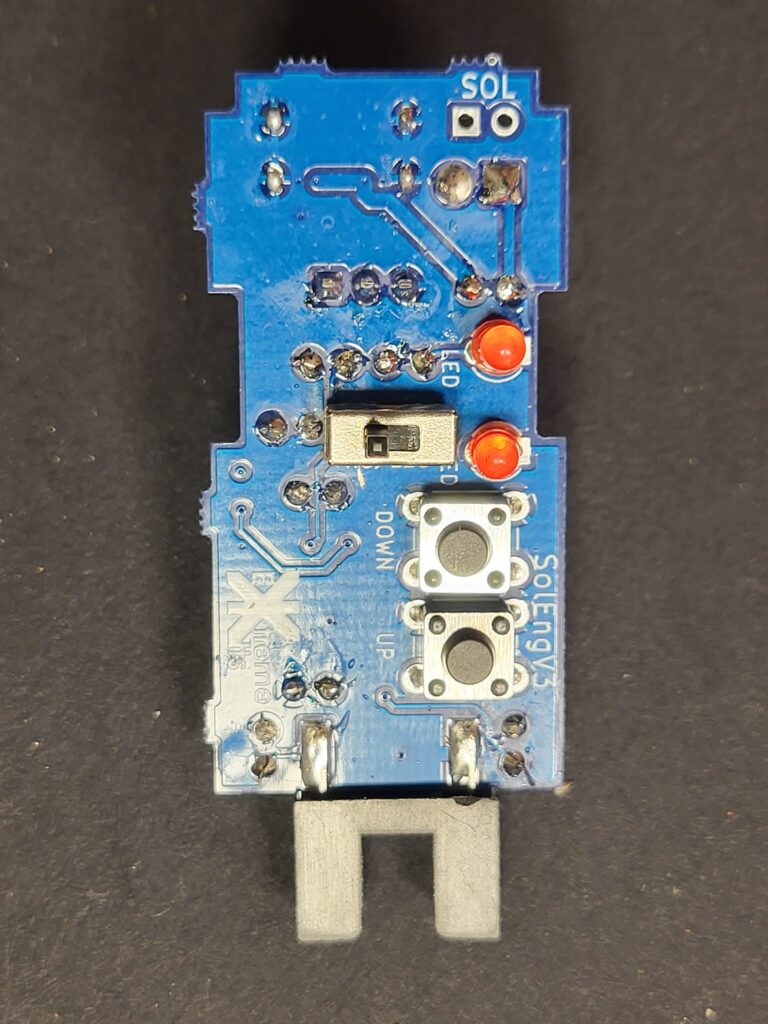

Solder in the two LED’s making sure the cathode (flat side of the LED) is soldered to the square pad on the PCB

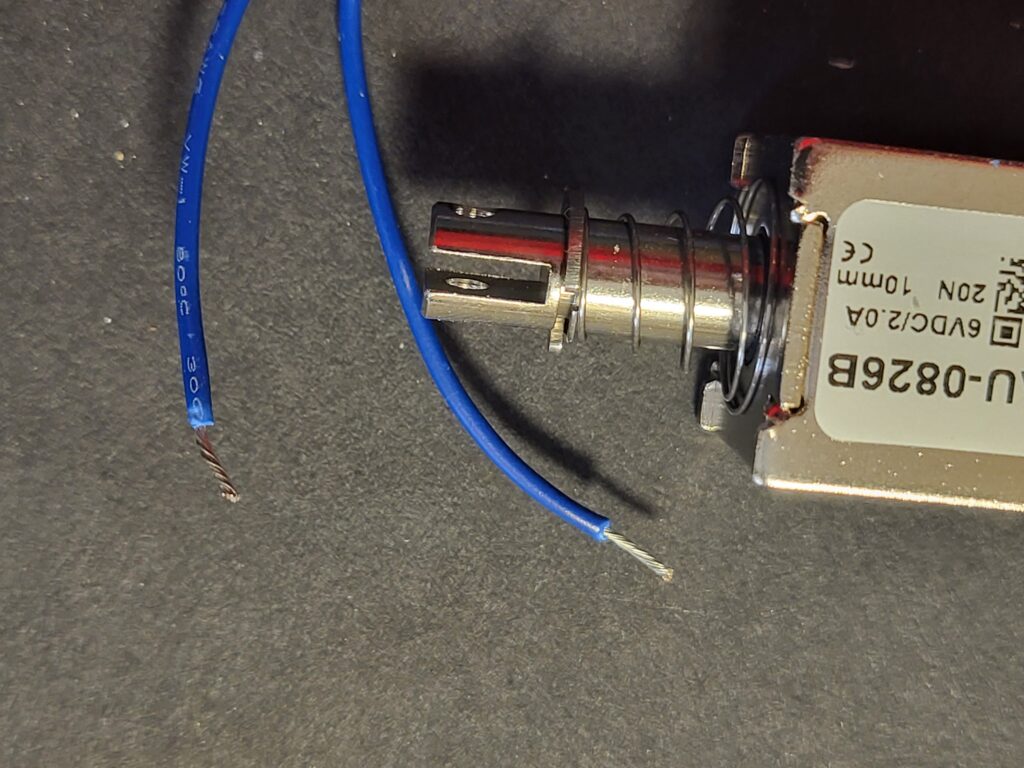

Solder the two wires from your solenoid to the PCB pads labelled “SOL”.

If the tinned wire ends wont fit through the holes, Cut off the tinned ends, strip a short amount of the insulation, twist the wires together, poke them through the pads in the PCB and then solder.
